9391-A3S96CB30PA

9391-A3S96CB30PA

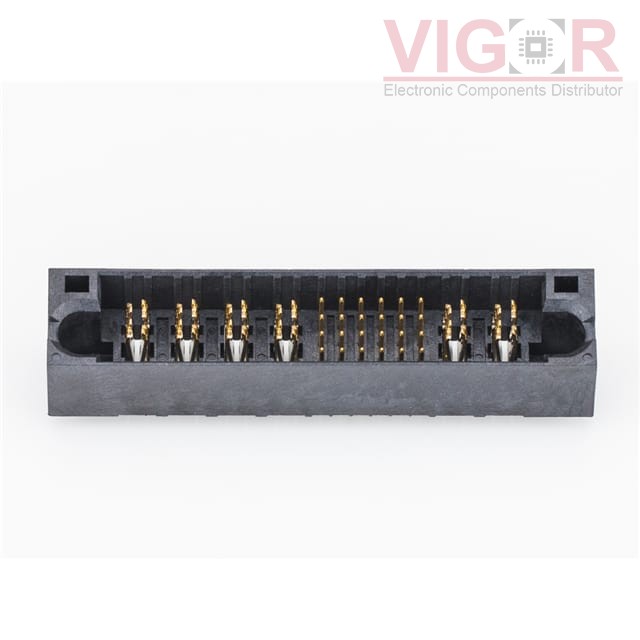

Image is for reference,
please contact us to get the real picture

Part No :

9391-A3S96CB30PA

Manufacturer
Oupiin
Description
HIGH POWER AND SIGNAL CONNECTOR,
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
9391-A3S96CB30PA PDF
Availability
15 pieces
Unit Price
$13.80000

Current price of 9391-A3S96CB30PA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

9391-A3S96CB30PA Specifications
Type Description
Series:9391
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:96
Number of Rows:4
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Press-Fit
Fastening Type:-
Contact Length - Mating:0.270" (6.86mm)
Contact Length - Post:0.171" (4.35mm)
Overall Contact Length:-
Insulation Height:0.496" (12.60mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.00µin (0.076µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT TSW-131-17-L-D

TSW-131-17-L-D

CONN HEADER VERT 62POS 2.54MM

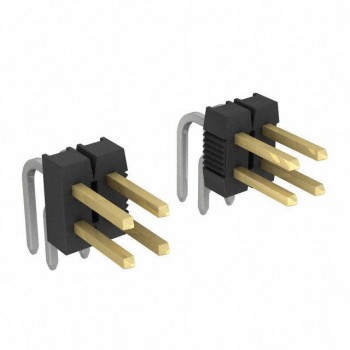

HOT 9-146309-0-27

9-146309-0-27

CONN HEADER R/A 54POS 2.54MM

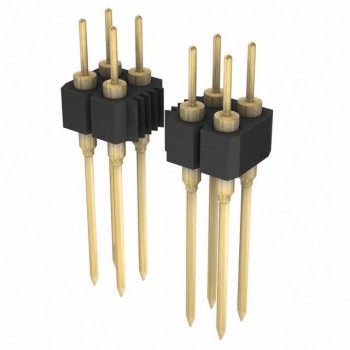

HOT 453-10-266-00-001101
