802-10-040-30-001000

802-10-040-30-001000

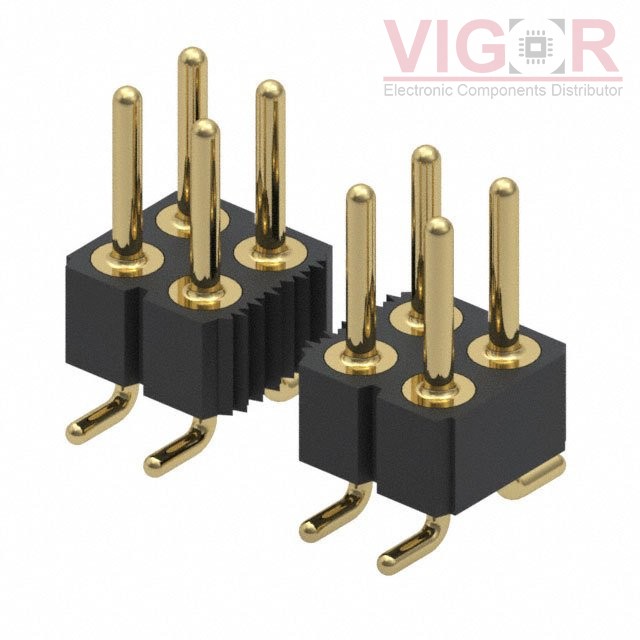

Image is for reference,
please contact us to get the real picture

Part No :

802-10-040-30-001000

Manufacturer
Mill-Max
Description
CONN HEADER SMD 40POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
802-10-040-30-001000 PDF
Availability
0 pieces
Unit Price
$16.40000

Current price of 802-10-040-30-001000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

802-10-040-30-001000 Specifications
Type Description
Series:802
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.195" (4.95mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.110" (2.79mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Gold
Contact Material:Brass Alloy
Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
