BDL-118-G-E

BDL-118-G-E

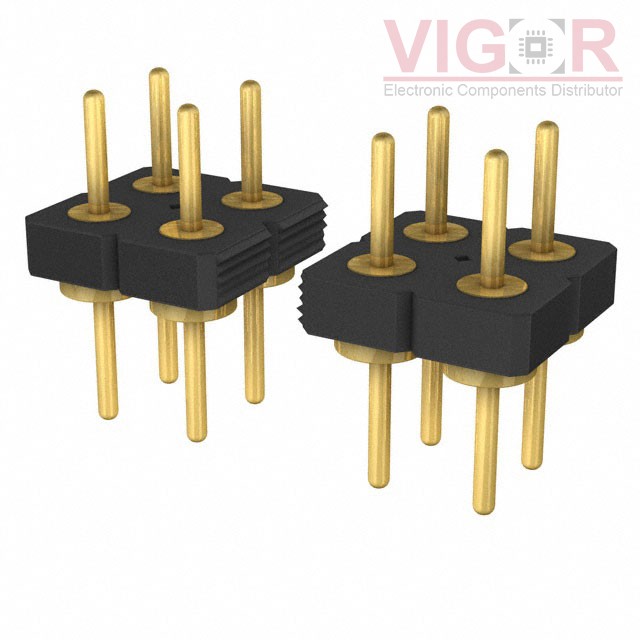

Image is for reference,
please contact us to get the real picture

Part No :

BDL-118-G-E

Manufacturer
Samtec, Inc.
Description
CONN HEADER VERT 36POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
BDL-118-G-E PDF
Availability
168 pieces
Unit Price
$17.58000

Current price of BDL-118-G-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BDL-118-G-E Specifications
Type Description
Series:BDL
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:36
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.105" (2.67mm)
Contact Length - Post:0.125" (3.18mm)
Overall Contact Length:0.300" (7.62mm)
Insulation Height:0.070" (1.78mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:20.0µin (0.51µm)
Contact Finish - Post:Gold
Contact Material:-
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 0432550067

0432550067

CONN HEADER VERT 3POS 6.35MM

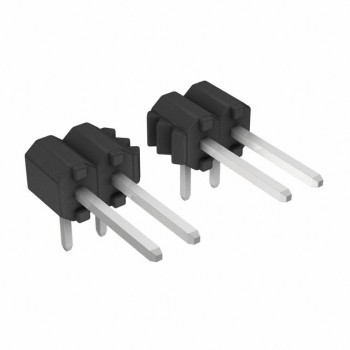

HOT MDF7-25P-2.54DS(55)

MDF7-25P-2.54DS(55)

CONN HEADER R/A 25POS 2.54MM

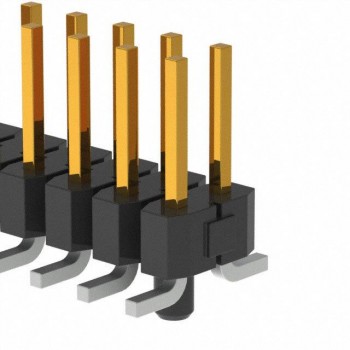

HOT TSM-118-01-L-DV-A
