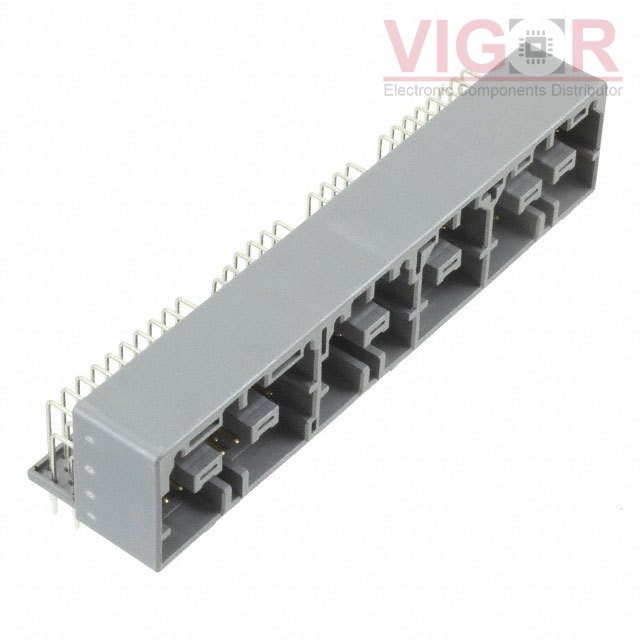

1-5178203-6

Image is for reference,
please contact us to get the real picture

Part No :: 1-5178203-6

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER BRD EDGE 100POS

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: 1-5178203-6 PDF

Availability: 277 pieces

Unit Price: ~~$44.75000~~

Current price of 1-5178203-6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1-5178203-6 Specifications

Type	Description
Series:	Multi-Lock
Package:	Tube
Part Status:	Active
Connector Type:	-
Contact Type:	Tab
Pitch - Mating:	-
Number of Positions:	100
Number of Rows:	4
Row Spacing - Mating:	0.098" (2.50mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Board Edge, Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	0.280" (7.11mm)
Contact Length - Post:	0.157" (4.00mm)
Overall Contact Length:	-
Insulation Height:	-
Contact Shape:	Rectangular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin-Lead
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT), Glass Filled
Features:	Mounting Brackets
Operating Temperature:	-30°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Gray
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	-
