IL-AG5-16P-D3T2-A

IL-AG5-16P-D3T2-A

Image is for reference,
please contact us to get the real picture

Part No :

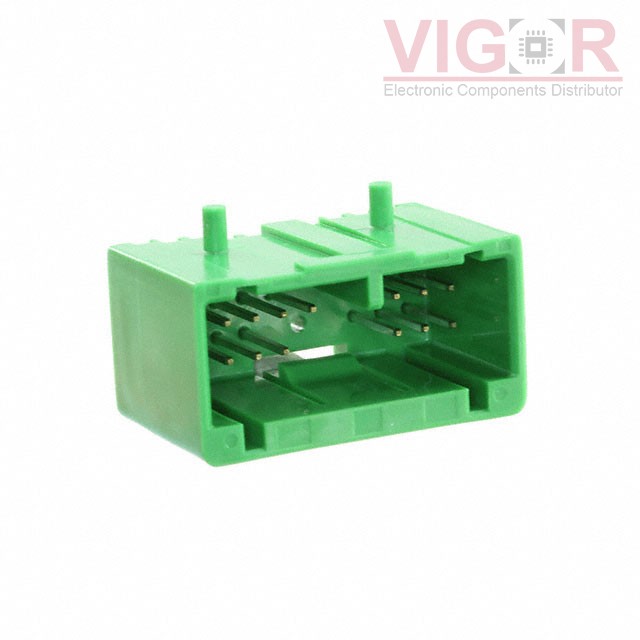

IL-AG5-16P-D3T2-A

Manufacturer
JAE Electronics
Description
CONN HEADER VERT 16POS 2.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
IL-AG5-16P-D3T2-A PDF
Availability
1557 pieces
Unit Price
$2.75000

Current price of IL-AG5-16P-D3T2-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IL-AG5-16P-D3T2-A Specifications
Type Description
Series:IL-AG5
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:16
Number of Rows:2
Row Spacing - Mating:0.118" (3.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Lock
Contact Length - Mating:0.331" (8.40mm)
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:0.594" (15.09mm)
Insulation Height:0.717" (18.20mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-40°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Green
Current Rating (Amps):3A per Contact
Voltage Rating:-
