IPL1-104-02-L-SH-K

IPL1-104-02-L-SH-K

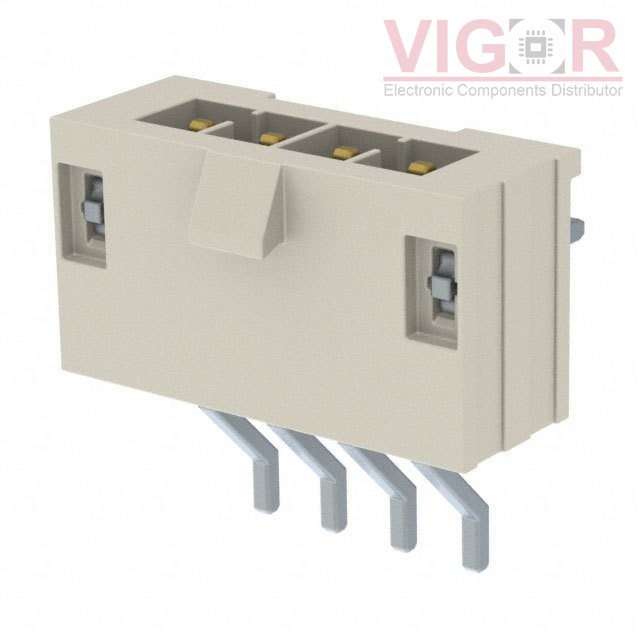

Image is for reference,
please contact us to get the real picture

Part No :

IPL1-104-02-L-SH-K

Manufacturer
Samtec, Inc.
Description
CONN HEADER SMD R/A 4POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
IPL1-104-02-L-SH-K PDF
Availability
64 pieces
Unit Price
$4.19000

Current price of IPL1-104-02-L-SH-K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPL1-104-02-L-SH-K Specifications
Type Description
Series:Mini Mate® IPL1
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:0.215" (5.46mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.220" (5.60mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Guide
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:675VAC, 954VDC
