DF22R-3P-7.92DS(05)

DF22R-3P-7.92DS(05)

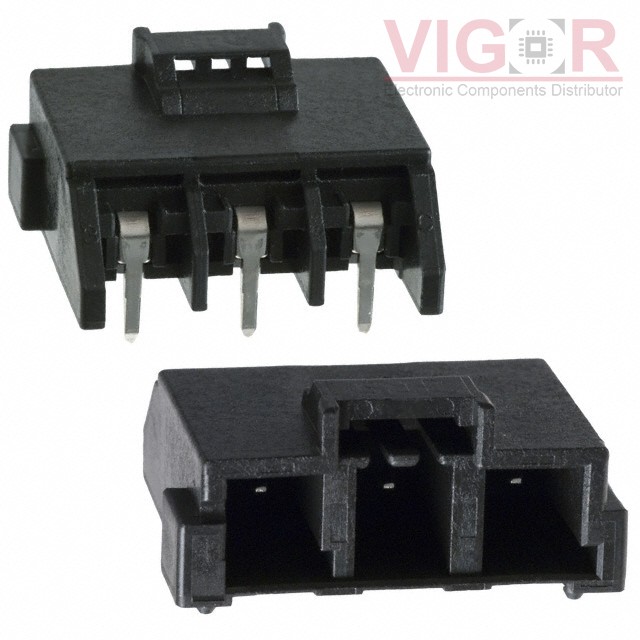

Image is for reference,
please contact us to get the real picture

Part No :

DF22R-3P-7.92DS(05)

Manufacturer
Hirose
Description
CONN HEADER R/A 3POS 7.92MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
DF22R-3P-7.92DS(05) PDF
Availability
0 pieces
Unit Price
$1.07000

Current price of DF22R-3P-7.92DS(05) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DF22R-3P-7.92DS(05) Specifications
Type Description
Series:EnerBee™ DF22
Package:Bulk
Part Status:Last Time Buy
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.312" (7.92mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.354" (9.00mm)
Contact Length - Post:0.146" (3.70mm)
Overall Contact Length:-
Insulation Height:0.480" (12.20mm)
Contact Shape:Square
Contact Finish - Mating:Tin-Copper
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:-
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon
Features:Board Guide
Operating Temperature:-35°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):25A
Voltage Rating:1000V
