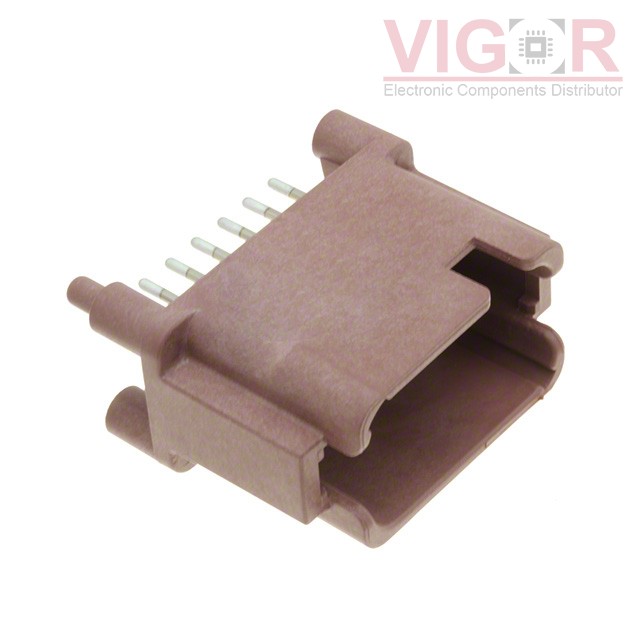

DTF15-12PD

DTF15-12PD

Image is for reference,
please contact us to get the real picture

Part No :

DTF15-12PD

Manufacturer
Description
CONN HEADER VERT 12POS 4.44MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
DTF15-12PD PDF
Availability
0 pieces
Unit Price
$10.45000

Current price of DTF15-12PD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DTF15-12PD Specifications
Type Description
Series:DTF
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.175" (4.44mm)
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:0.359" (9.12mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.125" (3.18mm)
Overall Contact Length:-
Insulation Height:1.377" (34.98mm)
Contact Shape:Circular
Contact Finish - Mating:Nickel
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA46), Nylon 4/6, Glass Filled
Features:Board Guide
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Brown
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT XG8S-0431

XG8S-0431

CONN HEADER VERT 4POS 2.54MM
HOT HIF3BD-10PA-2.54DSA(63)

HIF3BD-10PA-2.54DSA(63)

CONN HEADER VERT 10POS 2.54MM

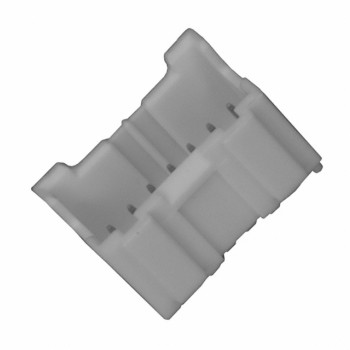

HOT B14B-PADSS-1(LF)(SN)
