0681512025

0681512025

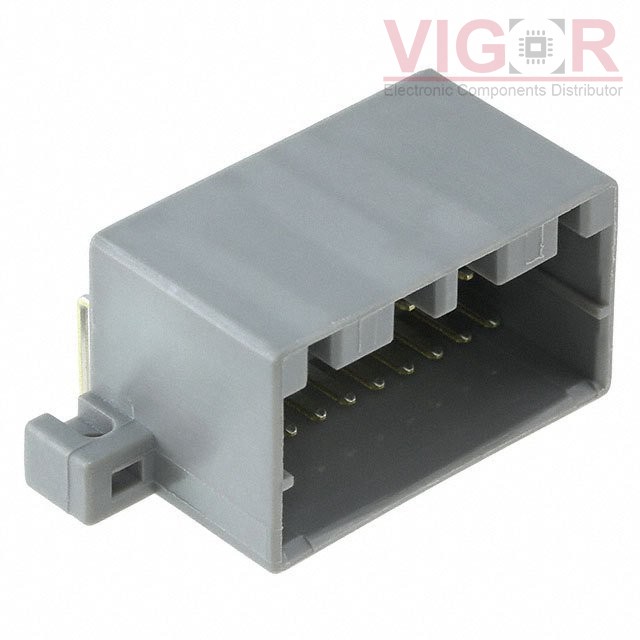

Image is for reference,
please contact us to get the real picture

Part No :

0681512025

Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 20POS 2.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
0681512025 PDF
Availability
24 pieces
Unit Price
$5.01000

Current price of 0681512025 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0681512025 Specifications
Type Description
Series:68151
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.205" (5.20mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock
Contact Length - Mating:0.276" (7.00mm)
Contact Length - Post:0.157" (4.00mm)
Overall Contact Length:-
Insulation Height:0.665" (16.90mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Mounting Flange
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 HB
Insulation Color:Gray
Current Rating (Amps):-
Voltage Rating:-
