4282-1-0100-12-SP

4282-1-0100-12-SP

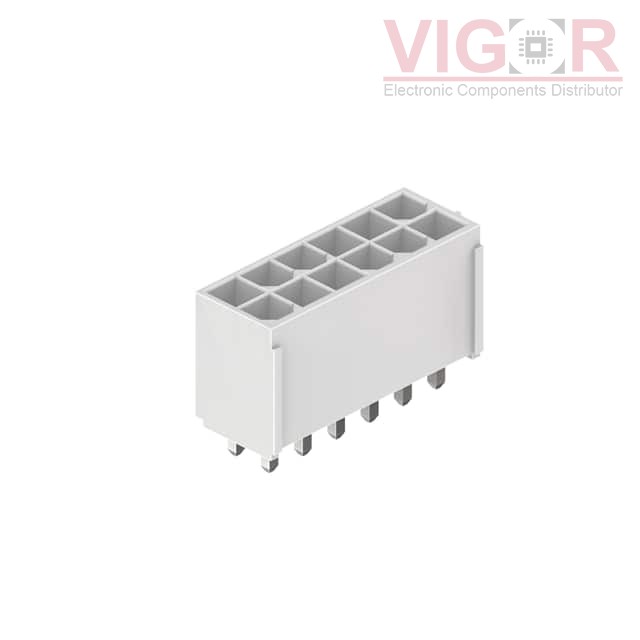

Image is for reference,
please contact us to get the real picture

Part No :

4282-1-0100-12-SP

Manufacturer
CnC Tech
Description
CONN HEADER VERT 12POS DL 94V-0
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
4282-1-0100-12-SP PDF
Availability
3000 pieces
Unit Price
$0.85000

Current price of 4282-1-0100-12-SP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

4282-1-0100-12-SP Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.165" (4.20mm)
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:0.165" (4.20mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.157" (4.00mm)
Overall Contact Length:-
Insulation Height:0.504" (12.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:-
Current Rating (Amps):9A
Voltage Rating:600VAC/DC
