109901

109901

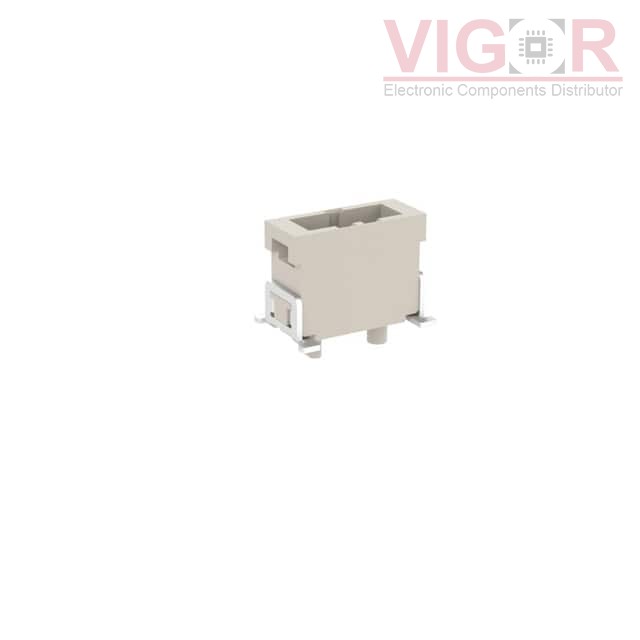

Image is for reference,
please contact us to get the real picture

Part No :

109901

Manufacturer
ERNI Electronics
Description
IBRIDGE 2MM 02POS M VERT SMT
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
109901 PDF
Availability
0 pieces
Unit Price
$2.56000

Current price of 109901 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

109901 Specifications
Type Description
Series:IBRIDGE ULTRA
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.157" (4.00mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.307" (7.80mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:98.4µin (2.50µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):5A
Voltage Rating:95V, 300V
