ZSS-113-09-G-D-1315

ZSS-113-09-G-D-1315

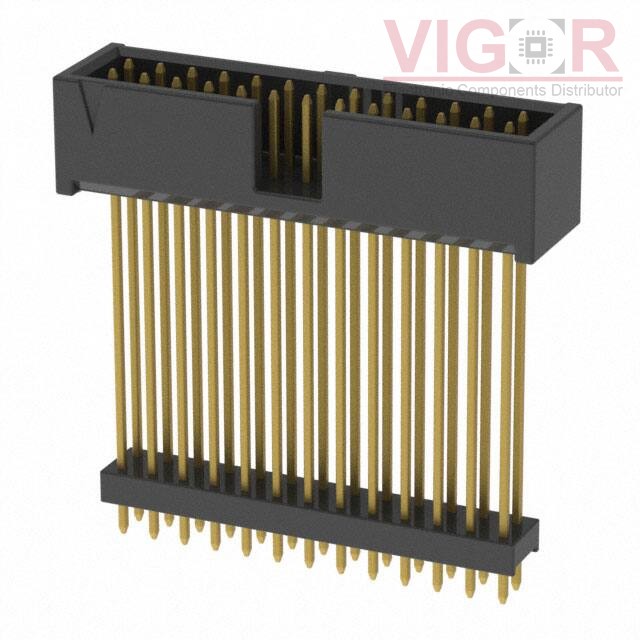

Image is for reference,
please contact us to get the real picture

Part No :

ZSS-113-09-G-D-1315

Manufacturer
Samtec, Inc.
Description
CONN HDR .100" 26POS
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
ZSS-113-09-G-D-1315 PDF
Availability
95 pieces
Unit Price
$5.02000

Current price of ZSS-113-09-G-D-1315 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ZSS-113-09-G-D-1315 Specifications
Type Description
Series:Flex Stack, ZSS
Package:Bulk
Part Status:Active
Connector Type:Header, Elevated
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:26
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.250" (6.35mm)
Contact Length - Post:0.115" (2.92mm)
Overall Contact Length:1.430" (36.32mm)
Insulation Height:1.315" (33.40mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Gold
Contact Material:Phosphor Bronze
Insulation Material:Polyester, Glass Filled
Features:Keying Slot
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
