AT15-12PA-BM03

AT15-12PA-BM03

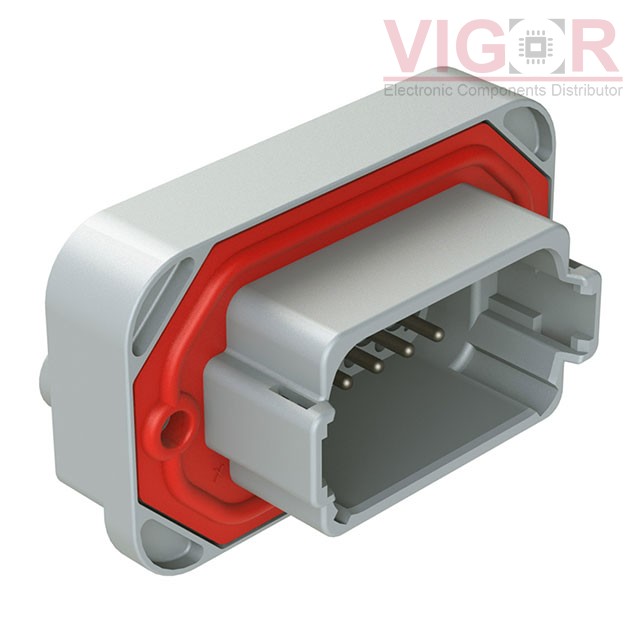

Image is for reference,
please contact us to get the real picture

Part No :

AT15-12PA-BM03

Manufacturer
Tuchel / Amphenol
Description
CONN HEADER VERT 12POS
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
AT15-12PA-BM03 PDF
Availability
120150 pieces
Unit Price
$8.07000

Current price of AT15-12PA-BM03 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AT15-12PA-BM03 Specifications
Type Description
Series:BoardLock™ AT
Package:Tray
Part Status:Active
Connector Type:Receptacle
Contact Type:Male Pin
Pitch - Mating:-
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:0.358" (9.10mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.122" (3.10mm)
Overall Contact Length:-
Insulation Height:1.185" (30.10mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:Board Guide, Mating Flange, Mounting Flange
Operating Temperature:-55°C ~ 125°C
Ingress Protection:IP67
Material Flammability Rating:-
Insulation Color:Gray
Current Rating (Amps):13A
Voltage Rating:250V
