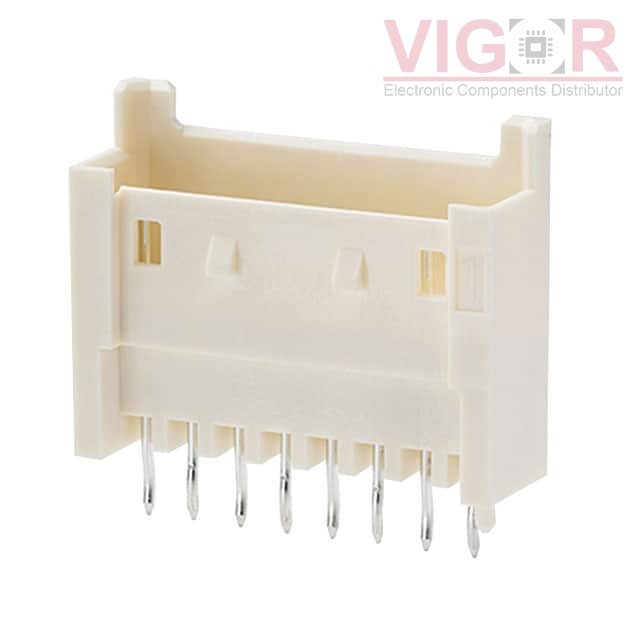

Image is for reference,
please contact us to get the real picture

Part No :

0535170830

Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 8POS 2.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
0535170830 PDF
Availability
455 pieces
Unit Price
$0.95000

Current price of 0535170830 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0535170830 Specifications
Type Description
Series:Mini-Lock 53517
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:8
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.689" (17.50mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA), Nylon
Features:Board Guide, Glow Wire Compliant
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:250V
