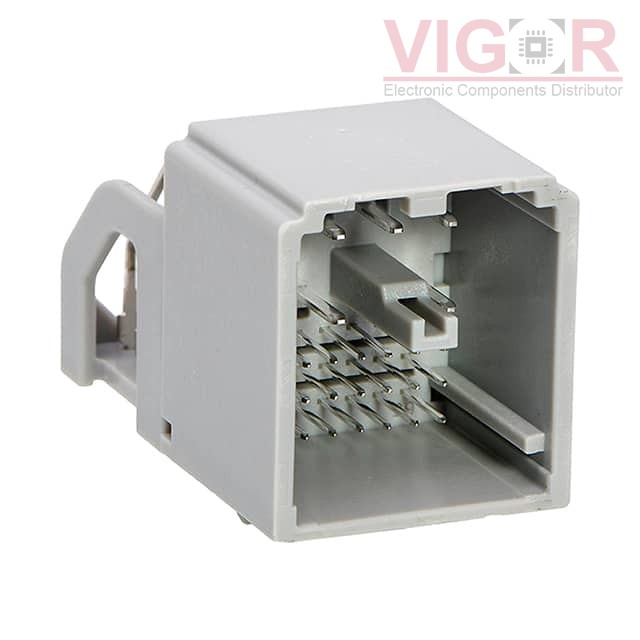

1600136604

1600136604

Image is for reference,
please contact us to get the real picture

Part No :

1600136604

Manufacturer
Woodhead - Molex
Description
AK50 HYB HDR ASSY 28 CKT KEY4/28
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
1600136604 PDF
Availability
0 pieces
Unit Price
$2.34073

Current price of 1600136604 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1600136604 Specifications
Type Description
Series:stAK50h 160013
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:-
Number of Positions:28
Number of Rows:-
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.902" (22.90mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Syndiotactic Polystyrene (SPS)
Features:Board Guide
Operating Temperature:-40°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Gray
Current Rating (Amps):-
Voltage Rating:500VDC
