81026-500203-RB

81026-500203-RB

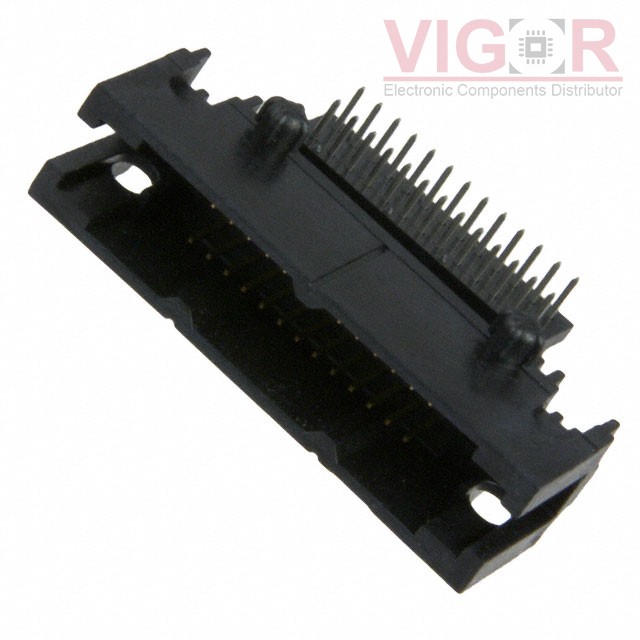

Image is for reference,
please contact us to get the real picture

Part No :

81026-500203-RB

Manufacturer
3M
Description
CONN HEADER R/A 26POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
81026-500203-RB PDF
Availability
139 pieces
Unit Price
$7.12000

Current price of 81026-500203-RB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

81026-500203-RB Specifications
Type Description
Series:810
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:26
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.140" (3.56mm)
Contact Length - Post:0.090" (2.29mm)
Overall Contact Length:-
Insulation Height:0.310" (7.87mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Lock
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):0.75A
Voltage Rating:-
