690357101472

690357101472

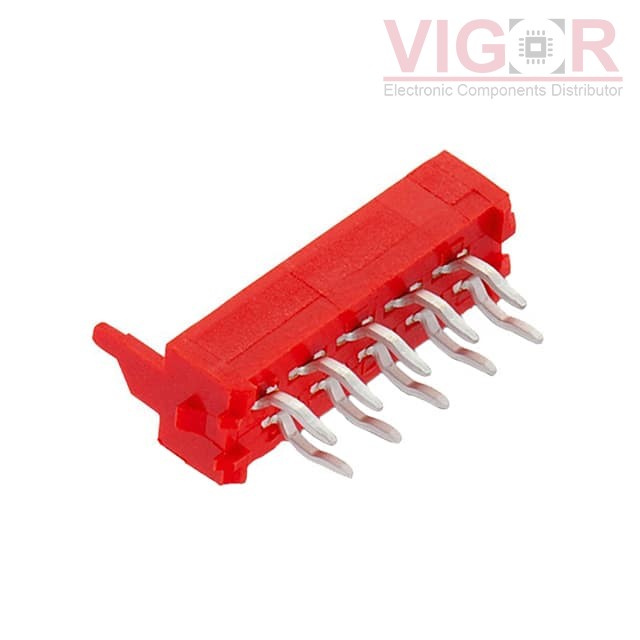

Image is for reference,
please contact us to get the real picture

Part No :

690357101472

Manufacturer
Würth Elektronik Midcom
Description
WR-MM MALE CONNECTOR WITHOUT LAT
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
690357101472 PDF
Availability
56 pieces
Unit Price
$2.18000

Current price of 690357101472 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

690357101472 Specifications
Type Description
Series:WR-MM
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:14
Number of Rows:2
Row Spacing - Mating:0.059" (1.50mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Press-Fit, Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.122" (3.10mm)
Overall Contact Length:-
Insulation Height:0.276" (7.00mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Red
Current Rating (Amps):1.5A per Contact
Voltage Rating:100VAC
