2059271110

2059271110

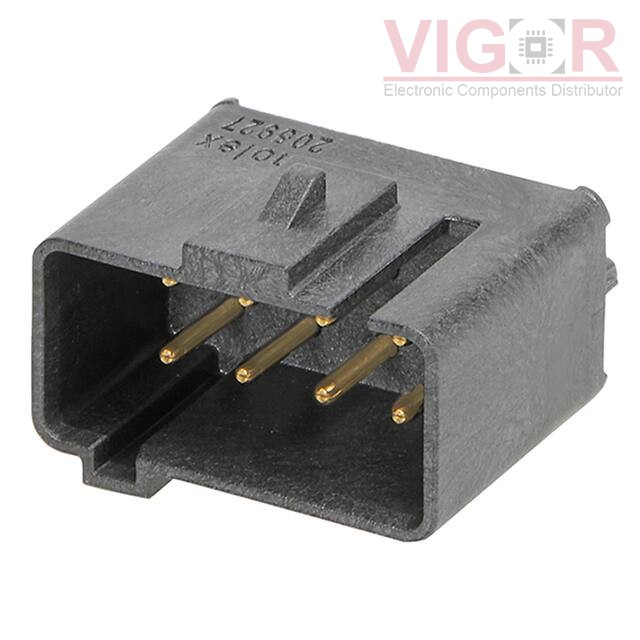

Image is for reference,
please contact us to get the real picture

Part No :

2059271110

Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 8POS 3.18MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
2059271110 PDF
Availability
396 pieces
Unit Price
$11.52000

Current price of 2059271110 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2059271110 Specifications
Type Description
Series:MultiCat 205927
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.125" (3.18mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:0.142" (3.60mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.114" (2.90mm)
Overall Contact Length:-
Insulation Height:0.591" (15.00mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.94µin (0.100µm)
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Guide
Operating Temperature:-40°C ~ 150°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):6.5A per Contact
Voltage Rating:500V
