Current price of 0050362462 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | Mini-Fit Jr 5569 |
Package: | Tray |
Part Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.165" (4.20mm) |
Number of Positions: | 6 |
Number of Rows: | 2 |
Row Spacing - Mating: | 0.165" (4.20mm) |
Number of Positions Loaded: | All |
Style: | Board to Cable/Wire |
Shrouding: | Shrouded - 4 Wall |
Mounting Type: | Through Hole, Right Angle |
Termination: | Solder |
Fastening Type: | Locking Ramp |
Contact Length - Mating: | - |
Contact Length - Post: | 0.142" (3.60mm) |
Overall Contact Length: | - |
Insulation Height: | 0.378" (9.60mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Tin |
Contact Finish Thickness - Mating: | 100.0µin (2.54µm) |
Contact Finish - Post: | Tin |
Contact Material: | Brass |
Insulation Material: | Liquid Crystal Polymer (LCP), Glass Filled |
Features: | Board Lock |
Operating Temperature: | - |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Black |
Current Rating (Amps): | - |
Voltage Rating: | - |
ERL-20 130K 1% T-1 RLR20C1303FP
VFD-MS300, 10HP 7.5KW 460V 17A H
DC OUTPUT MODULE 500MA

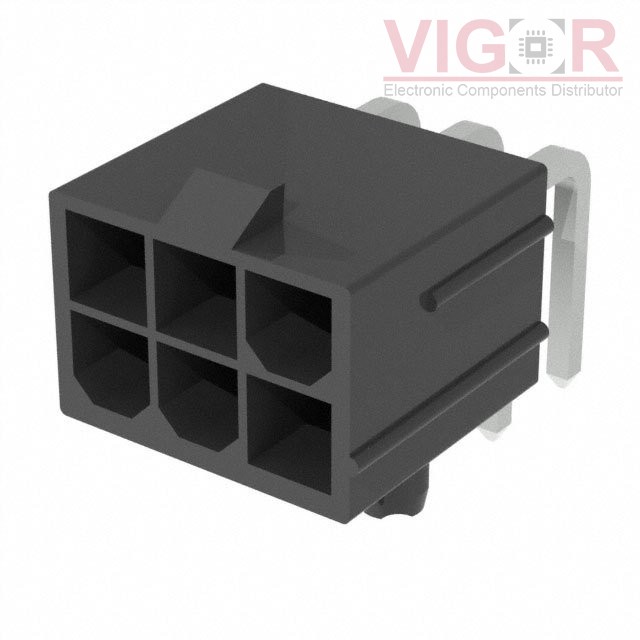

CONN HEADER R/A 6POS 4.2MM
