CE2S101C02

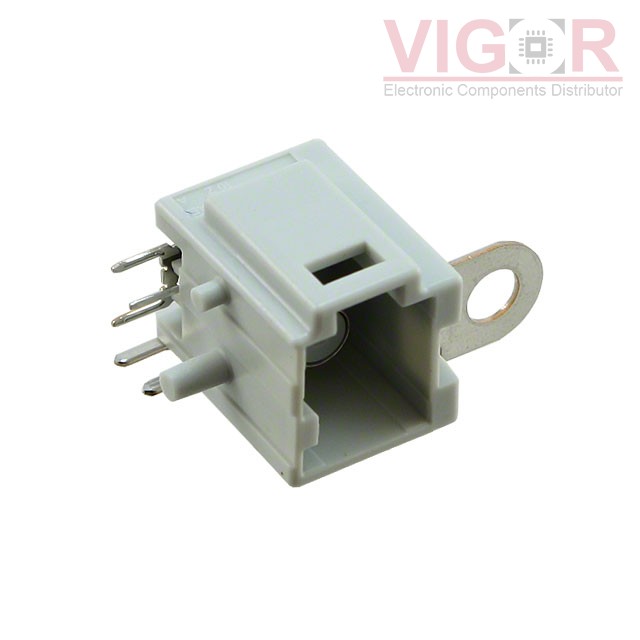

Image is for reference,
please contact us to get the real picture

Part No :: CE2S101C02

Manufacturer: JAE Electronics

Description: CONN HEADER R/A 1POS

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Aug 15 - Aug 19 2025

DataSheet: CE2S101C02 PDF

Availability: 0 pieces

Unit Price: ~~$1.72550~~

Current price of CE2S101C02 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CE2S101C02 Specifications

Type	Description
Series:	CE2
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Female Socket, Coaxial
Pitch - Mating:	-
Number of Positions:	1
Number of Rows:	-
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.118" (3.00mm)
Overall Contact Length:	-
Insulation Height:	0.451" (11.45mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold, Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polybutylene Terephthalate (PBT), Glass Filled
Features:	Board Guide, Bracket
Operating Temperature:	-30°C ~ 70°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Gray
Current Rating (Amps):	-
Voltage Rating:	-
