3-1123723-5

3-1123723-5

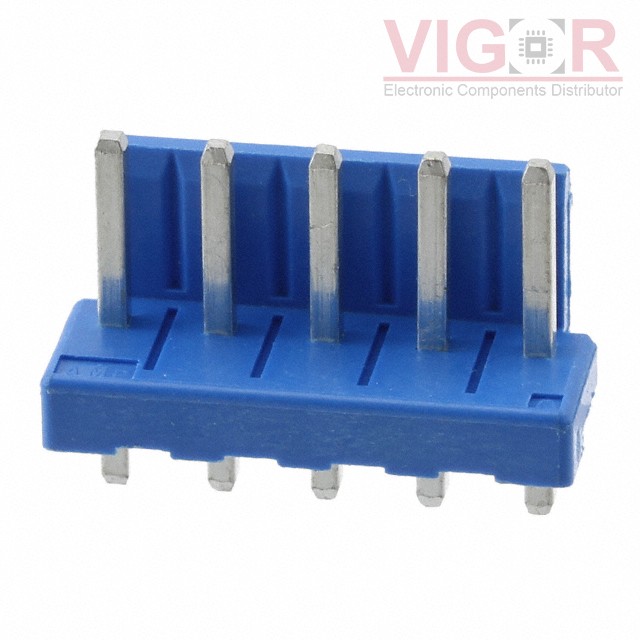

Image is for reference,
please contact us to get the real picture

Part No :

3-1123723-5

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER VERT 5POS 3.96MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 22 - Aug 26 2025
DataSheet
3-1123723-5 PDF
Availability
0 pieces
Unit Price
$0.13793

Current price of 3-1123723-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3-1123723-5 Specifications
Type Description
Series:Economy Power
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.303" (7.70mm)
Contact Length - Post:0.146" (3.70mm)
Overall Contact Length:0.567" (14.40mm)
Insulation Height:0.118" (3.00mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:-
Operating Temperature:-25°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Blue
Current Rating (Amps):7.5A
Voltage Rating:250VAC
