2011-1X05G00SH023B

2011-1X05G00SH023B

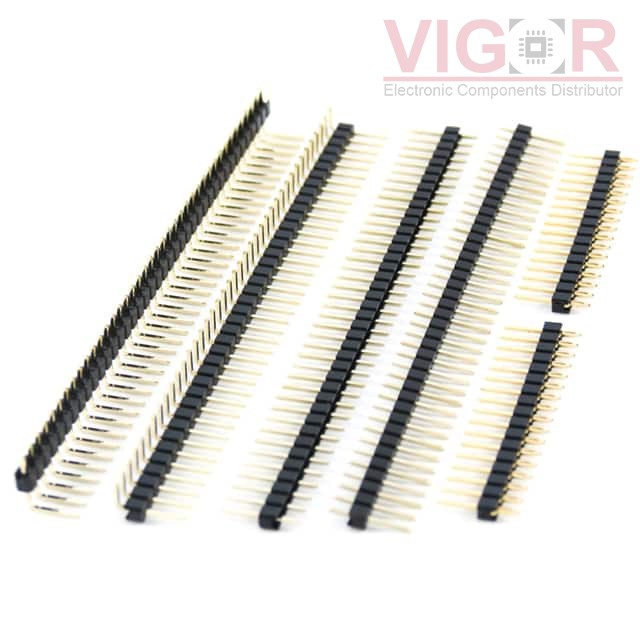

Image is for reference,
please contact us to get the real picture

Part No :

2011-1X05G00SH023B

Manufacturer
Oupiin
Description
PIN HEADER, SINGLE ROW, 5 PIN, S
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
2011-1X05G00SH023B PDF
Availability
9441 pieces
Unit Price
$0.15000

Current price of 2011-1X05G00SH023B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2011-1X05G00SH023B Specifications
Type Description
Series:2011
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:0.457" (11.60mm)
Insulation Height:0.098" (2.50mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
