3-647116-4

3-647116-4

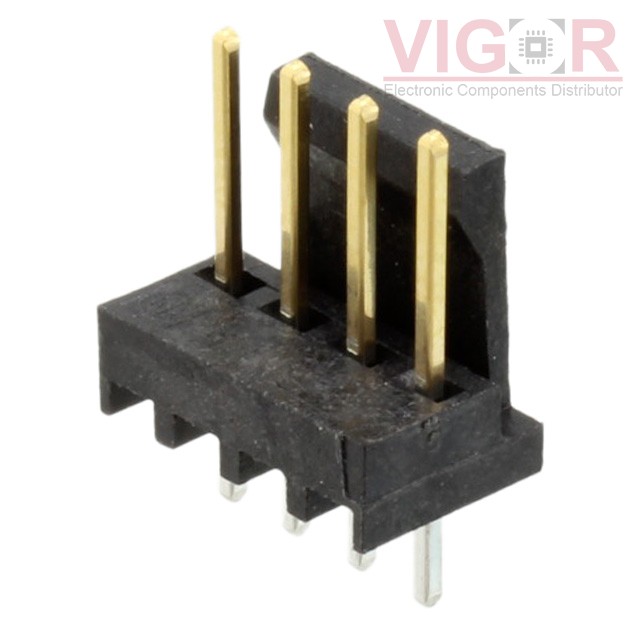

Image is for reference,
please contact us to get the real picture

Part No :

3-647116-4

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER VERT 4POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
3-647116-4 PDF
Availability
2237 pieces
Unit Price
$1.82000

Current price of 3-647116-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3-647116-4 Specifications
Type Description
Series:MTA-100
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.290" (7.37mm)
Contact Length - Post:0.135" (3.43mm)
Overall Contact Length:0.550" (13.97mm)
Insulation Height:0.347" (8.81mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA4T), Nylon 4T
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:250VAC
