0347630001

0347630001

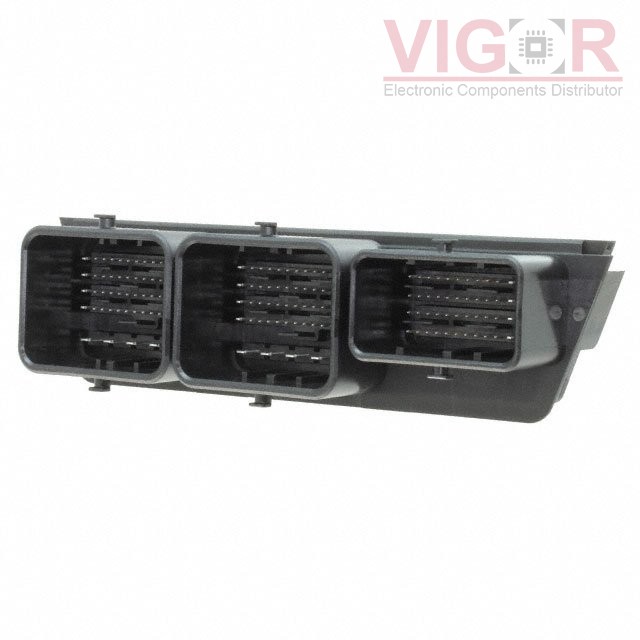

Image is for reference,
please contact us to get the real picture

Part No :

0347630001

Manufacturer
Woodhead - Molex
Description
CONN HEADER BRD EDGE 154POS
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
0347630001 PDF
Availability
681 pieces
Unit Price
$19.63000

Current price of 0347630001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0347630001 Specifications
Type Description
Series:CMC 34763
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:-
Number of Positions:154
Number of Rows:-
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Board Edge, Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:1.503" (38.18mm)
Contact Shape:-
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:-
Current Rating (Amps):-
Voltage Rating:-
