DML-16-A-H-T-A-TSMT-T/R

DML-16-A-H-T-A-TSMT-T/R

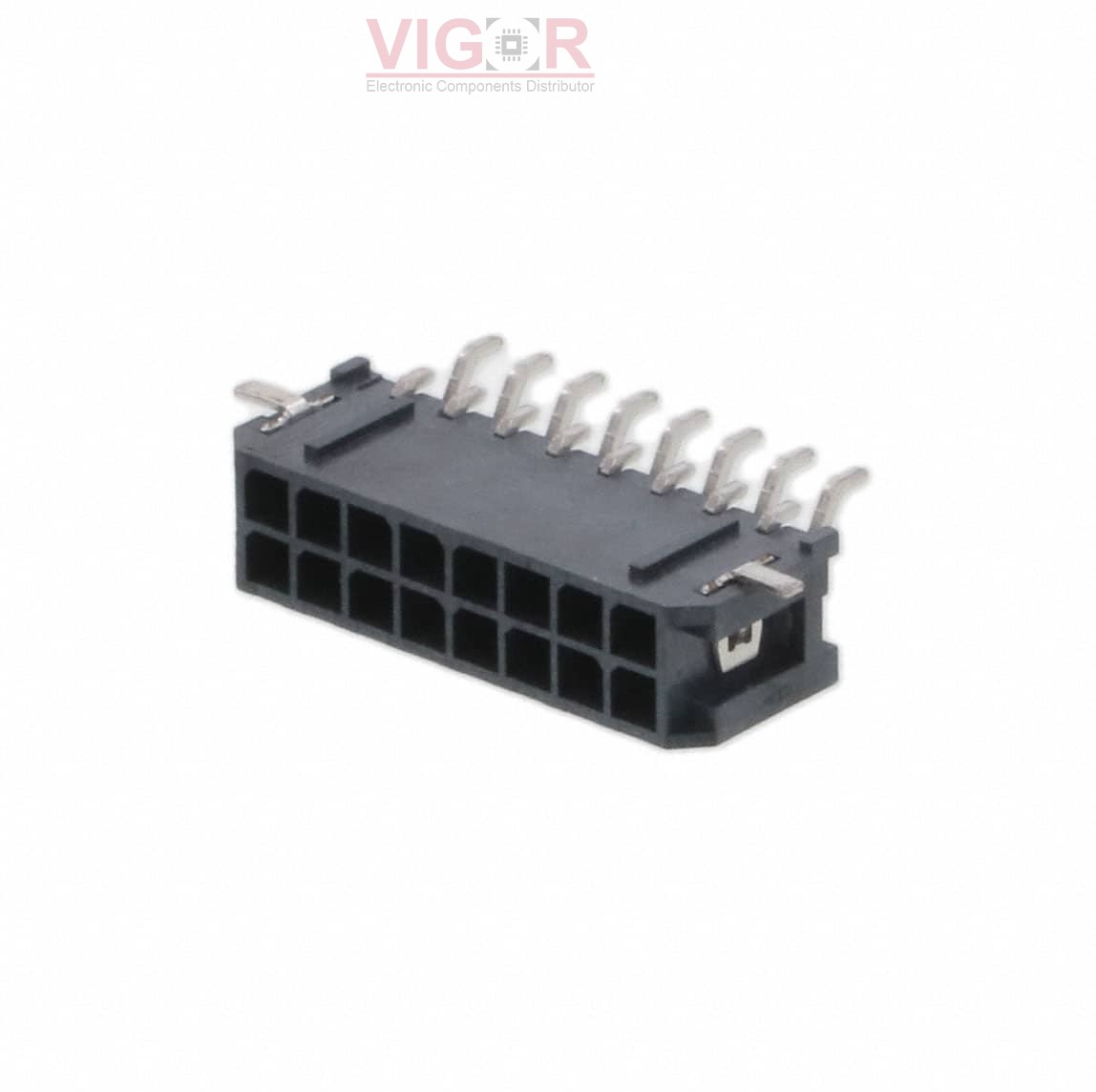

Image is for reference,
please contact us to get the real picture

Part No :

DML-16-A-H-T-A-TSMT-T/R

Manufacturer
Adam Tech
Description
CONN HEADER SMD R/A 16POS 3MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
DML-16-A-H-T-A-TSMT-T/R PDF
Availability
0 pieces
Unit Price
$1.56955

Current price of DML-16-A-H-T-A-TSMT-T/R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DML-16-A-H-T-A-TSMT-T/R Specifications
Type Description
Series:DML
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.118" (3.00mm)
Number of Positions:16
Number of Rows:2
Row Spacing - Mating:0.118" (3.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.289" (7.34mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Thermoplastic
Features:Solder Retention
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):5A (AC/DC)
Voltage Rating:250VAC/DC
