Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of B10B-PASK(LF)(SN) is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

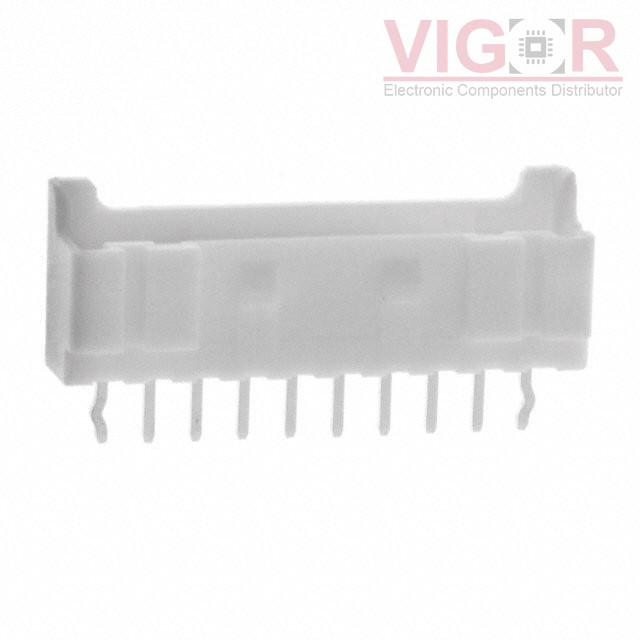

Type | Description |
---|---|
Series: | PA |
Package: | Bulk |
Part Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.079" (2.00mm) |
Number of Positions: | 10 |
Number of Rows: | 1 |
Row Spacing - Mating: | - |
Number of Positions Loaded: | All |
Style: | Board to Cable/Wire |
Shrouding: | Shrouded - 4 Wall |
Mounting Type: | Through Hole |
Termination: | Kinked Pin, Solder |
Fastening Type: | Locking Ramp |
Contact Length - Mating: | 0.126" (3.20mm) |
Contact Length - Post: | 0.118" (3.00mm) |
Overall Contact Length: | 0.319" (8.10mm) |
Insulation Height: | 0.303" (7.70mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Tin |
Contact Finish Thickness - Mating: | - |
Contact Finish - Post: | Tin |
Contact Material: | Copper Alloy |
Insulation Material: | Polybutylene Terephthalate (PBT), Glass Filled |
Features: | - |
Operating Temperature: | -25°C ~ 85°C |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Natural |
Current Rating (Amps): | 3A |
Voltage Rating: | 250V |
