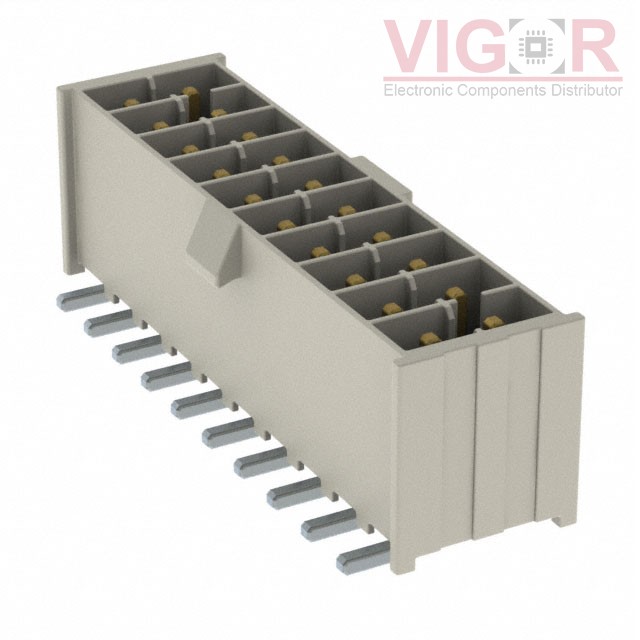

IPL1-110-02-L-D-K-TR

IPL1-110-02-L-D-K-TR

Image is for reference,
please contact us to get the real picture

Part No :

IPL1-110-02-L-D-K-TR

Manufacturer
Samtec, Inc.
Description
CONN HEADER SMD 20POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 11 - Aug 15 2025
DataSheet
IPL1-110-02-L-D-K-TR PDF
Availability
162 pieces
Unit Price
$4.30000

Current price of IPL1-110-02-L-D-K-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPL1-110-02-L-D-K-TR Specifications
Type Description
Series:Mini Mate® IPL1
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:0.215" (5.46mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.320" (8.13mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:675VAC, 954VDC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 852-10-042-20-002101

852-10-042-20-002101

CONN HEADER R/A 42POS 1.27MM

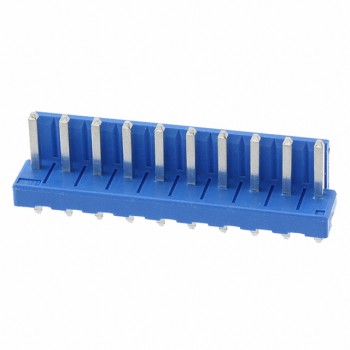

HOT 3-1123723-0

3-1123723-0

CONN HEADER VERT 10POS 3.96MM

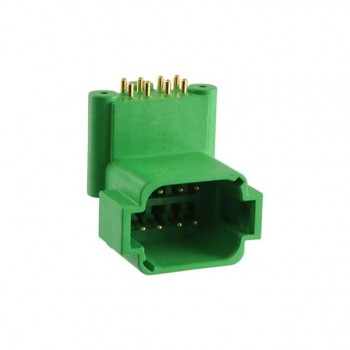

HOT ATF13-08PC-BM31
