Type | Description |
---|---|
Series: | Minitek127® 1.27mm |
Package: | Tube |
Part Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.050" (1.27mm) |
Number of Positions: | 50 |
Number of Rows: | 2 |
Row Spacing - Mating: | 0.050" (1.27mm) |
Number of Positions Loaded: | All |
Style: | Board to Board |
Shrouding: | Shrouded - 4 Wall |
Mounting Type: | Surface Mount |
Termination: | Solder |
Fastening Type: | Push-Pull |
Contact Length - Mating: | 0.120" (3.05mm) |
Contact Length - Post: | - |
Overall Contact Length: | - |
Insulation Height: | 0.220" (5.60mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Gold |
Contact Finish Thickness - Mating: | 10.0µin (0.25µm) |
Contact Finish - Post: | Tin |
Contact Material: | Copper Alloy |
Insulation Material: | Thermoplastic |
Features: | Pick and Place |
Operating Temperature: | - |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Black |
Current Rating (Amps): | - |
Voltage Rating: | - |

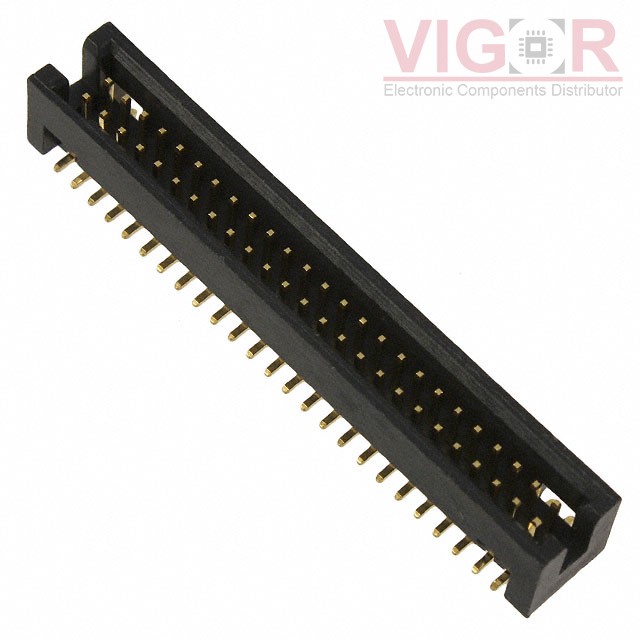

CONN HEADER SMD 50POS 1.27MM
