PH1-01-UA

PH1-01-UA

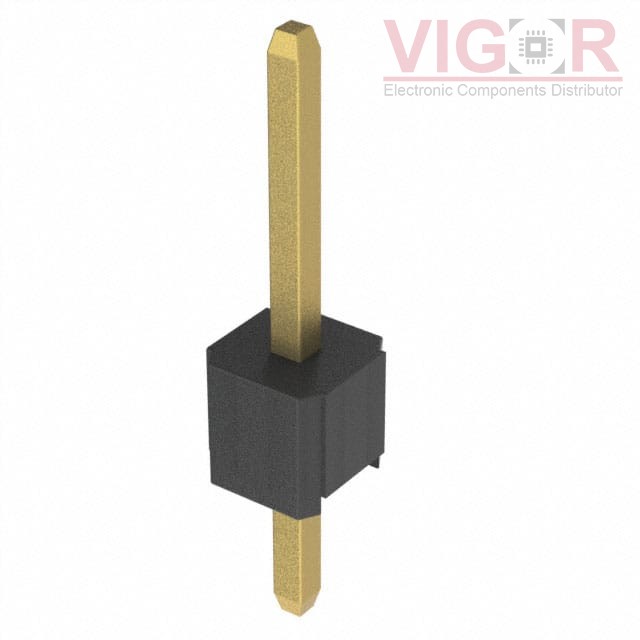

Image is for reference,
please contact us to get the real picture

Part No :

PH1-01-UA

Manufacturer
Adam Tech
Description
CONN HEADER VERT 1POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
PH1-01-UA PDF
Availability
6845 pieces
Unit Price
$0.10000

Current price of PH1-01-UA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PH1-01-UA Specifications
Type Description
Series:PH1
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:1
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.236" (6.00mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:0.454" (11.54mm)
Insulation Height:0.098" (2.50mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:250VAC
