TSM-103-01-S-SH-TR

TSM-103-01-S-SH-TR

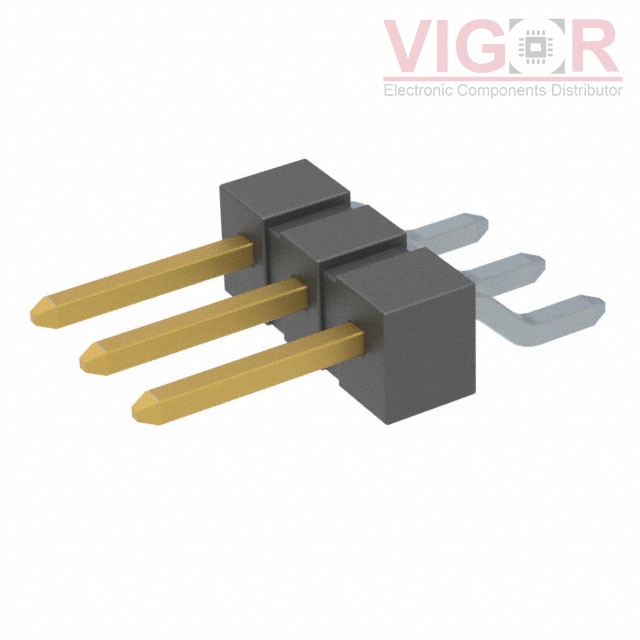

Image is for reference,
please contact us to get the real picture

Part No :

TSM-103-01-S-SH-TR

Manufacturer
Samtec, Inc.
Description
CONN HEADER SMD R/A 3POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
TSM-103-01-S-SH-TR PDF
Availability
0 pieces
Unit Price
$1.06656

Current price of TSM-103-01-S-SH-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSM-103-01-S-SH-TR Specifications
Type Description
Series:TSM
Package:Tape & Reel (TR)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.120" (3.05mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
