BBD-123-T-A

BBD-123-T-A

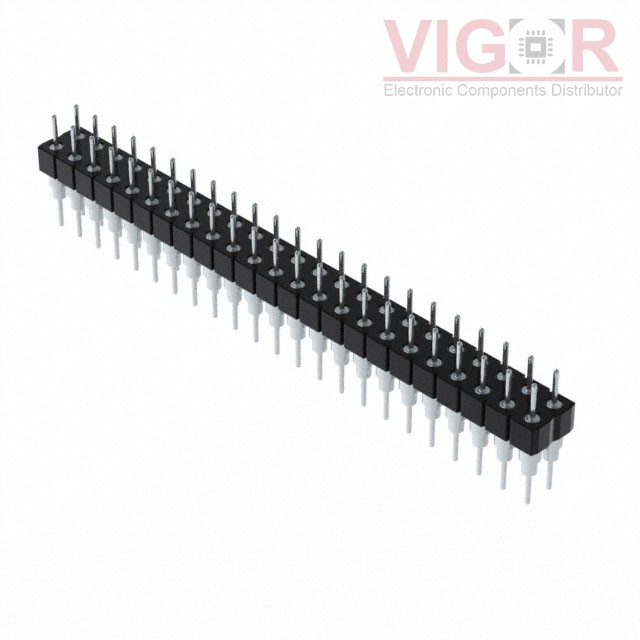

Image is for reference,
please contact us to get the real picture

Part No :

BBD-123-T-A

Manufacturer
Samtec, Inc.
Description
CONN HEADER VERT 46POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
BBD-123-T-A PDF
Availability
0 pieces
Unit Price
$10.10556

Current price of BBD-123-T-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BBD-123-T-A Specifications
Type Description
Series:BBD
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:46
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.125" (3.18mm)
Contact Length - Post:0.125" (3.18mm)
Overall Contact Length:0.460" (11.68mm)
Insulation Height:0.211" (5.35mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Nickel
Contact Material:-
Insulation Material:Polyester, Glass Filled
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
