0908143820

0908143820

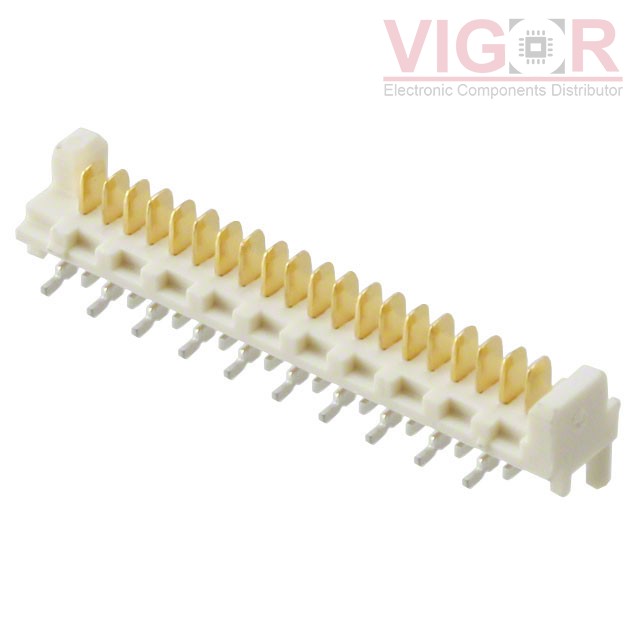

Image is for reference,
please contact us to get the real picture

Part No :

0908143820

Manufacturer
Woodhead - Molex
Description
CONN HEADER SMD 20POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
0908143820 PDF
Availability
0 pieces
Unit Price
$0.92162

Current price of 0908143820 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0908143820 Specifications
Type Description
Series:Picoflex PF-50 90814
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.050" (1.27mm)
Number of Positions:20
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 2 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.085" (2.15mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.161" (4.10mm)
Contact Shape:Rectangular
Contact Finish - Mating:Palladium-Nickel
Contact Finish Thickness - Mating:24.0µin (0.61µm)
Contact Finish - Post:Tin
Contact Material:Cartridge Brass
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:Board Guide
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):1.2A
Voltage Rating:250V
