0367720003

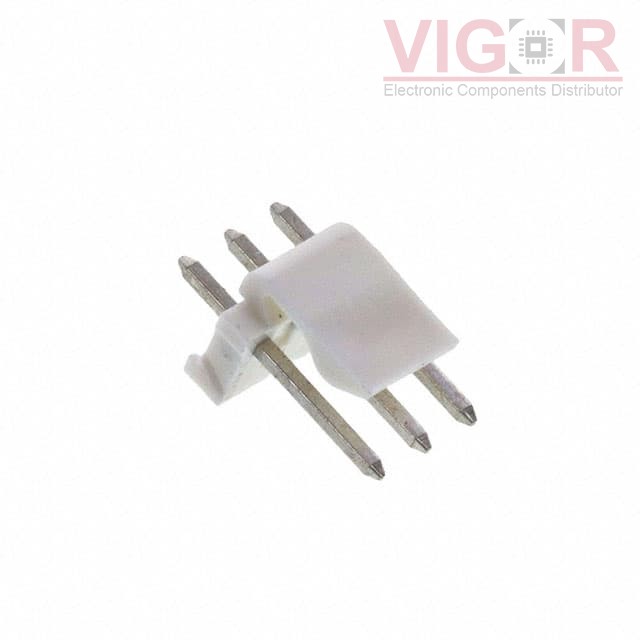

Image is for reference,
please contact us to get the real picture

Part No :: 0367720003

Manufacturer: Woodhead - Molex

Description: CONN HEADER VERT 3POS 3.96MM

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Aug 03 - Aug 07 2025

DataSheet: 0367720003 PDF

Availability: 663 pieces

Unit Price: ~~$0.45000~~

Current price of 0367720003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0367720003 Specifications

Type	Description
Series:	KK396, 36772
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.156" (3.96mm)
Number of Positions:	3
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 1 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.450" (11.43mm)
Contact Length - Post:	0.170" (4.32mm)
Overall Contact Length:	0.750" (19.05mm)
Insulation Height:	0.446" (11.33mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Contact Finish - Post:	Tin
Contact Material:	-
Insulation Material:	Polyester, Glass Filled
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	-
Voltage Rating:	-
