175785-1

175785-1

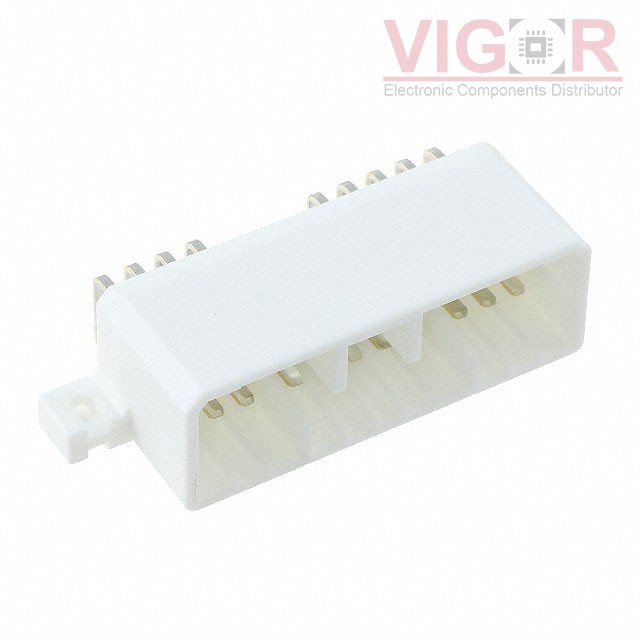

Image is for reference,
please contact us to get the real picture

Part No :

175785-1

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER R/A 20POS 3.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
175785-1 PDF
Availability
2412 pieces
Unit Price
$5.59000

Current price of 175785-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

175785-1 Specifications
Type Description
Series:Multi-Lock
Package:Tray
Part Status:Active
Connector Type:-
Contact Type:Tab
Pitch - Mating:0.138" (3.50mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.232" (5.90mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.157" (4.00mm)
Overall Contact Length:-
Insulation Height:0.622" (15.80mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:Mounting Flange
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:White
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:-
