DF13A-4P-1.25H(76)

DF13A-4P-1.25H(76)

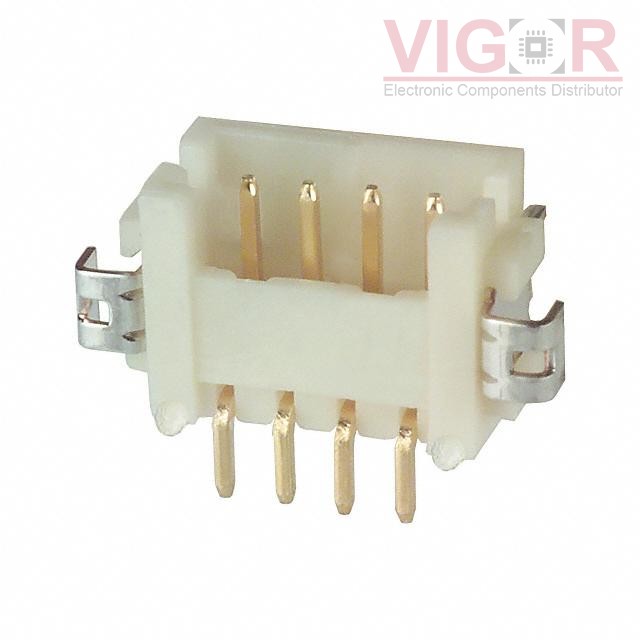

Image is for reference,
please contact us to get the real picture

Part No :

DF13A-4P-1.25H(76)

Manufacturer
Hirose
Description
CONN HEADER SMD R/A 4POS 1.25MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
DF13A-4P-1.25H(76) PDF
Availability
582 pieces
Unit Price
$0.76000

Current price of DF13A-4P-1.25H(76) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DF13A-4P-1.25H(76) Specifications
Type Description
Series:DF13
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.049" (1.25mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.142" (3.60mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Solder Retention
Operating Temperature:-35°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):1A
Voltage Rating:150V
