ST80X-18S(30)

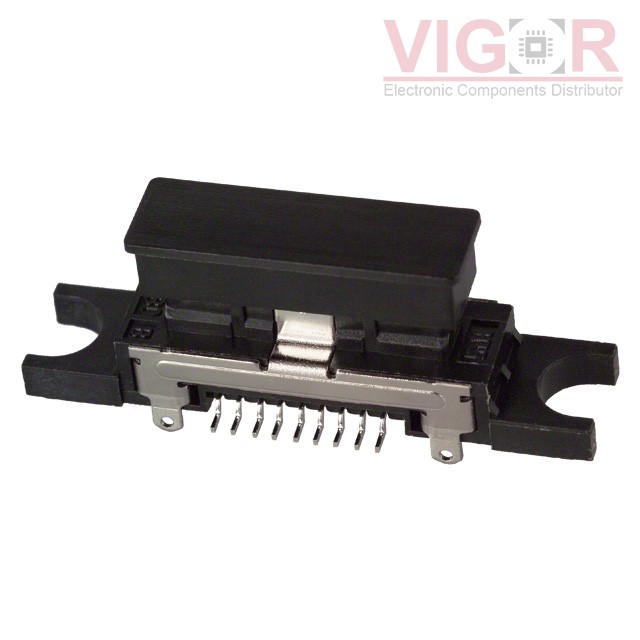

Image is for reference,
please contact us to get the real picture

Part No :: ST80X-18S(30)

Manufacturer: Hirose

Description: CONN HEADER SMD 18POS 1MM

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: ST80X-18S(30) PDF

Availability: 7013 pieces

Unit Price: ~~$4.04000~~

Current price of ST80X-18S(30) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ST80X-18S(30) Specifications

Type	Description
Series:	ST
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Plug, Cradle
Contact Type:	Non-Gendered
Pitch - Mating:	0.039" (1.00mm)
Number of Positions:	18
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	-
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.378" (9.60mm)
Contact Shape:	-
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	-
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA), Nylon
Features:	Board Guide, Mounting Flange, Shielded
Operating Temperature:	-30°C ~ 80°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	0.5A
Voltage Rating:	100V

Please confirm the specifications of the products when ordering.
