ES9P004VFZR1600

ES9P004VFZR1600

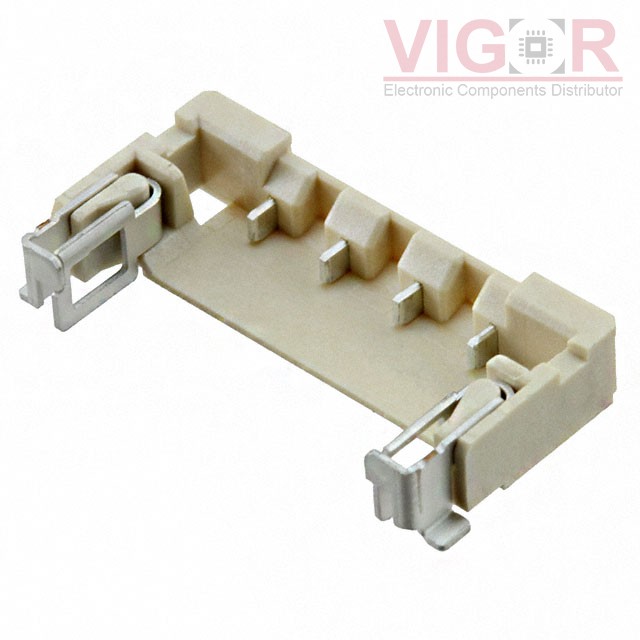

Image is for reference,
please contact us to get the real picture

Part No :

ES9P004VFZR1600

Manufacturer
JAE Electronics
Description
CONN HEADER SMD R/A 4POS 3MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
ES9P004VFZR1600 PDF
Availability
720 pieces
Unit Price
$0.97000

Current price of ES9P004VFZR1600 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ES9P004VFZR1600 Specifications
Type Description
Series:ES9
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Plug
Contact Type:Male Blade
Pitch - Mating:0.118" (3.00mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 3 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Spring Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.118" (3.00mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Solder Retention
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Ivory
Current Rating (Amps):3A
Voltage Rating:300V
