0022289180

0022289180

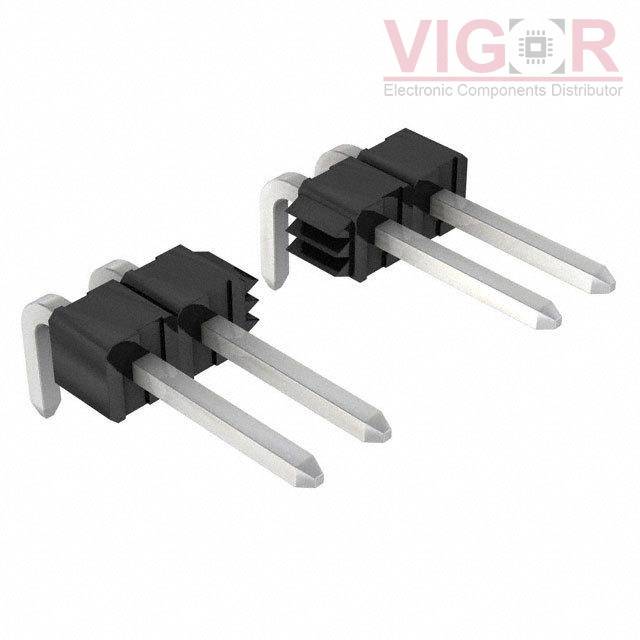

Image is for reference,
please contact us to get the real picture

Part No :

0022289180

Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 18POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
0022289180 PDF
Availability
0 pieces
Unit Price
$0.61306

Current price of 0022289180 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0022289180 Specifications
Type Description
Series:KK254, 42377
Package:Bulk
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:18
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Kinked Pin, Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.244" (6.20mm)
Contact Length - Post:0.135" (3.43mm)
Overall Contact Length:-
Insulation Height:0.098" (2.50mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:-
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
