IPBT-110-H1-T-D-RA-K

IPBT-110-H1-T-D-RA-K

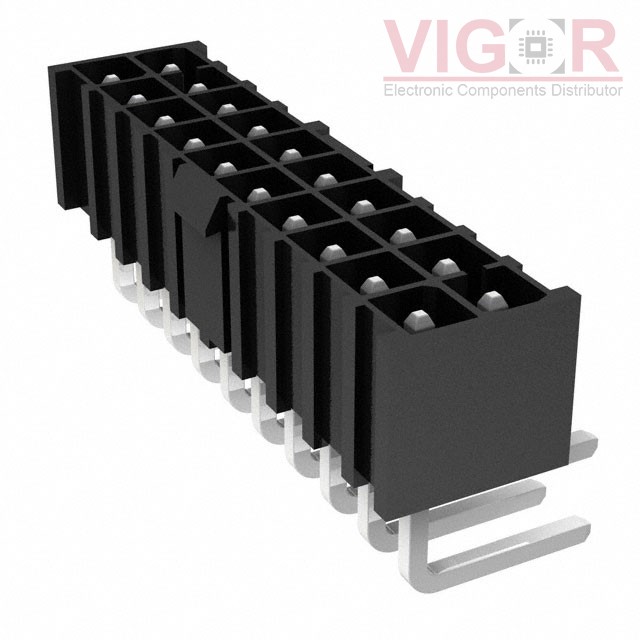

Image is for reference,
please contact us to get the real picture

Part No :

IPBT-110-H1-T-D-RA-K

Manufacturer
Samtec, Inc.
Description
CONN HEADER R/A 20POS 4.2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
IPBT-110-H1-T-D-RA-K PDF
Availability
290 pieces
Unit Price
$5.05000

Current price of IPBT-110-H1-T-D-RA-K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPBT-110-H1-T-D-RA-K Specifications
Type Description
Series:Power Mate® IPBT
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.165" (4.20mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.165" (4.20mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:0.260" (6.60mm)
Contact Length - Post:0.147" (3.73mm)
Overall Contact Length:-
Insulation Height:0.424" (10.77mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:400VAC, 565VDC
