PBC27SAHN

PBC27SAHN

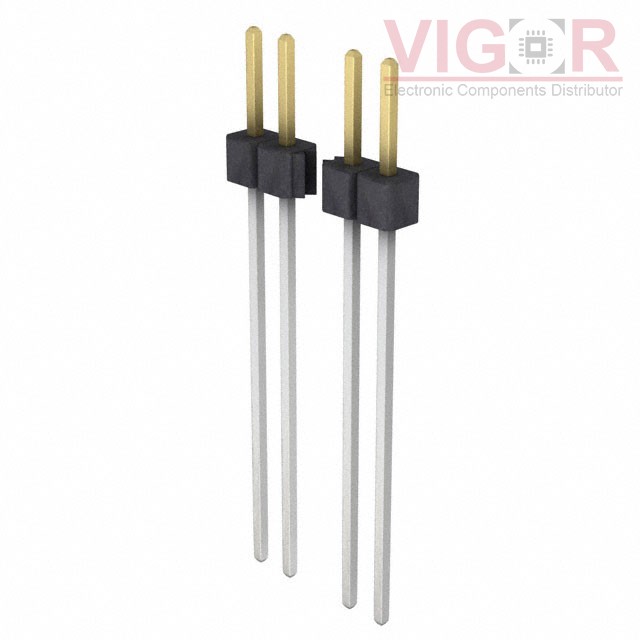

Image is for reference,
please contact us to get the real picture

Part No :

PBC27SAHN

Manufacturer
Sullins Connector Solutions
Description
CONN HEADER VERT 27POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
PBC27SAHN PDF
Availability
0 pieces
Unit Price
$3.85000

Current price of PBC27SAHN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PBC27SAHN Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:27
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.820" (20.83mm)
Overall Contact Length:1.150" (29.21mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-65°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
