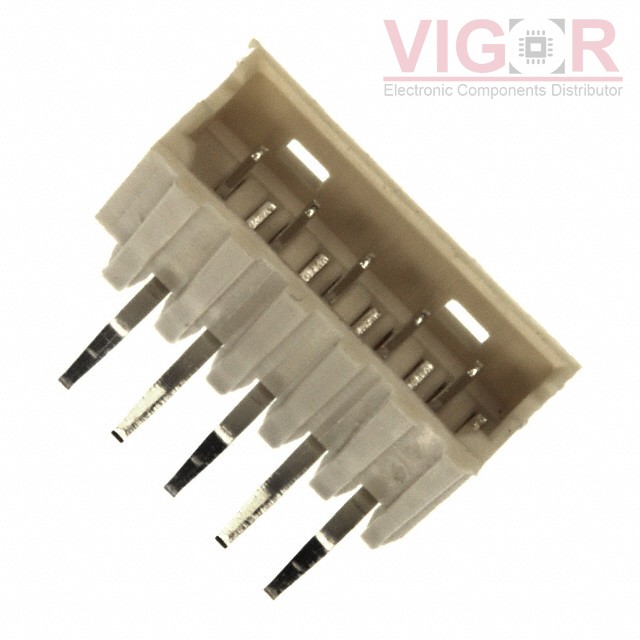

Part No :

0530150510

Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 5POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 16 - Aug 20 2025
DataSheet
0530150510 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 0530150510 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0530150510 Specifications
Type Description
Series:MicroBlade 53015
Package:Bulk
Part Status:Obsolete
Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.079" (2.00mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Kinked Pin, Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.122" (3.10mm)
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.183" (4.65mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:35.4µin (0.90µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:White
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 0015977123

0015977123

CONN HEADER VERT 12POS 4.2MM

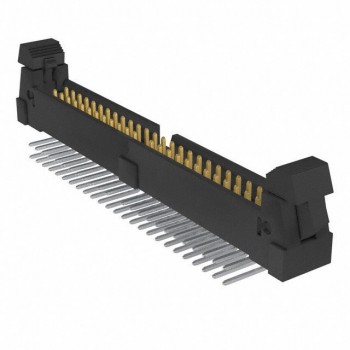

HOT EHT-125-01-S-D-RA-26

EHT-125-01-S-D-RA-26

CONN HEADER R/A 50POS 2MM

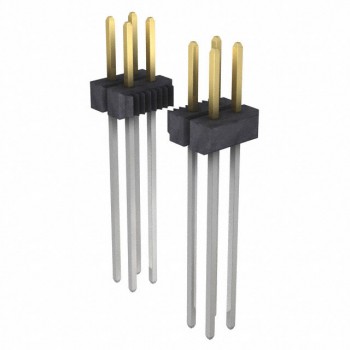

HOT PZC15DAHN
