315-83-109-41-001101

315-83-109-41-001101

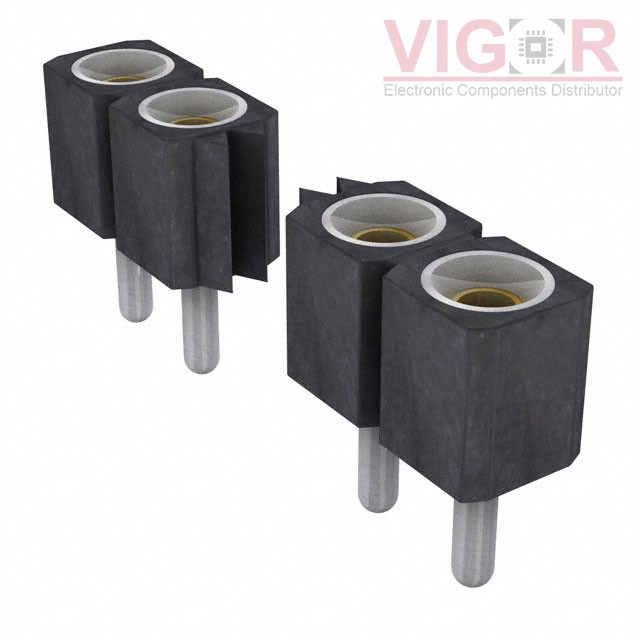

Image is for reference,
please contact us to get the real picture

Part No :

315-83-109-41-001101

Manufacturer
Preci-Dip
Description
CONN SOCKET 9POS 0.1 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
315-83-109-41-001101 PDF
Availability
0 pieces
Unit Price
$0.53568

Current price of 315-83-109-41-001101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

315-83-109-41-001101 Specifications
Type Description
Series:315
Package:Bulk
Part Status:Active
Connector Type:Socket
Contact Type:Female Socket
Style:Board to Board
Number of Positions:9
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:29.5µin (0.75µm)
Insulation Color:Black
Insulation Height:0.124" (3.14mm)
Contact Length - Post:0.107" (2.71mm)
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):1A
Voltage Rating:-
