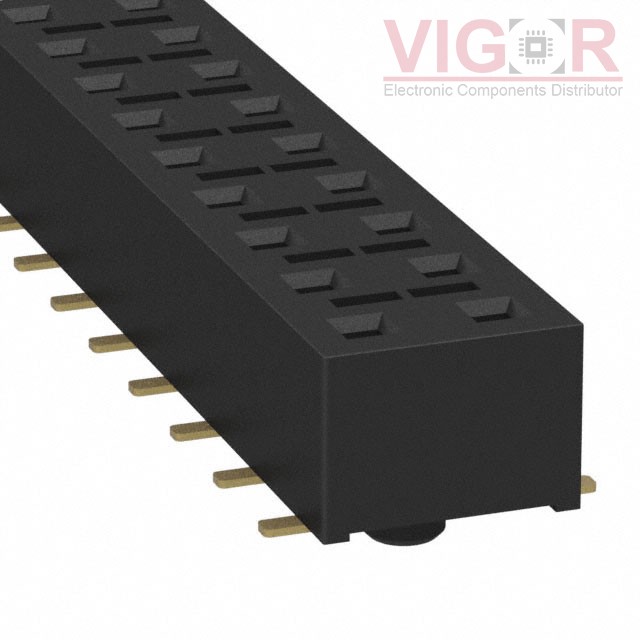

HLE-113-02-G-DV-A-K

Image is for reference,
please contact us to get the real picture

Part No :: HLE-113-02-G-DV-A-K

Manufacturer: Samtec, Inc.

Description: CONN RCPT 26POS 0.1 GOLD SMD

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: HLE-113-02-G-DV-A-K PDF

Availability: 107 pieces

Unit Price: ~~$7.18000~~

Current price of HLE-113-02-G-DV-A-K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HLE-113-02-G-DV-A-K Specifications

Type	Description
Series:	HLE
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	26
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	20.0µin (0.51µm)
Insulation Color:	Black
Insulation Height:	0.144" (3.66mm)
Contact Length - Post:	-
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	-
Contact Finish - Post:	Gold
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Guide, Pick and Place
Current Rating (Amps):	4.1A per Contact
Voltage Rating:	400VAC
