SSM-117-L-SV-BE-P-TR

SSM-117-L-SV-BE-P-TR

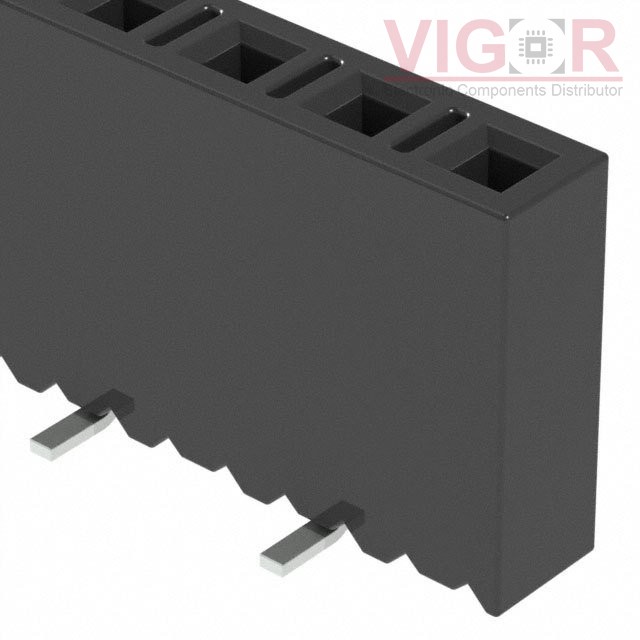

Image is for reference,
please contact us to get the real picture

Part No :

SSM-117-L-SV-BE-P-TR

Manufacturer
Samtec, Inc.
Description
CONN RCPT 17POS 0.1 GOLD SMD
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
SSM-117-L-SV-BE-P-TR PDF
Availability
0 pieces
Unit Price
$3.75720

Current price of SSM-117-L-SV-BE-P-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SSM-117-L-SV-BE-P-TR Specifications
Type Description
Series:SSM
Package:Tape & Reel (TR)
Part Status:Active
Connector Type:Receptacle, Bottom Entry
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:17
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Insulation Color:Black
Insulation Height:0.290" (7.37mm)
Contact Length - Post:-
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:-
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Pick and Place
Current Rating (Amps):5.2A per Contact
Voltage Rating:405VAC, 572VDC
