215309-9

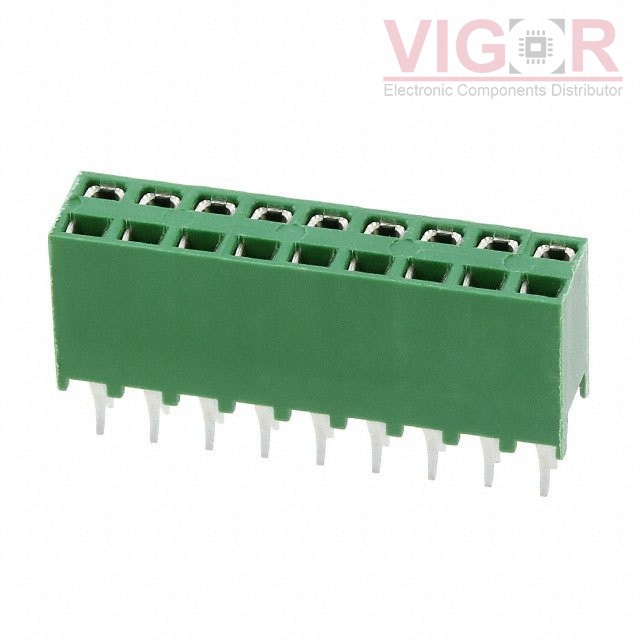

Image is for reference,
please contact us to get the real picture

Part No :: 215309-9

Manufacturer: TE Connectivity AMP Connectors

Description: CONN RCPT 18POS 0.1 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

Shipped from: HK warehouse

Expected Shipping Date: Jul 08 - Jul 12 2025

DataSheet: 215309-9 PDF

Availability: 2014 pieces

Unit Price: ~~$2.35000~~

Current price of 215309-9 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

215309-9 Specifications

Type	Description
Series:	AMPMODU HV-100
Package:	Tray
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	18
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole
Termination:	Kinked Pin, Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	31.5µin (0.80µm)
Insulation Color:	Green
Insulation Height:	0.335" (8.51mm)
Contact Length - Post:	0.122" (3.10mm)
Operating Temperature:	-
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	-
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
