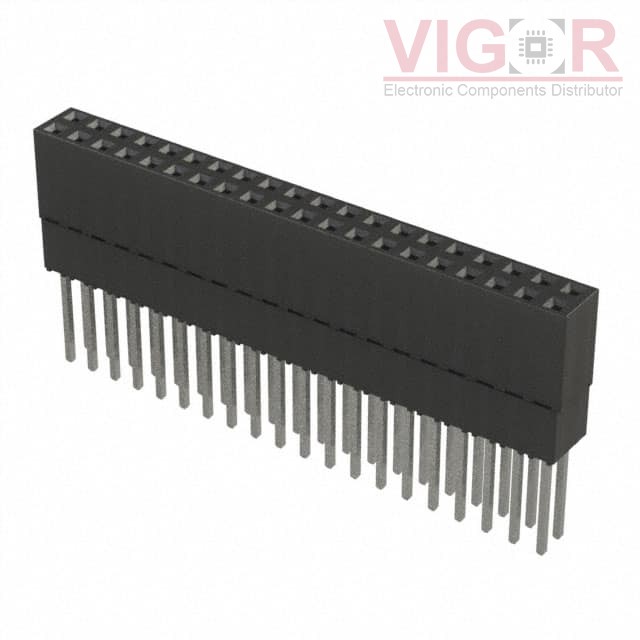

ESQ-120-24-T-D

ESQ-120-24-T-D

Image is for reference,
please contact us to get the real picture

Part No :

ESQ-120-24-T-D

Manufacturer
Samtec, Inc.
Description
CONN SOCKET 40POS 0.1 TIN PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
May 20 - May 24 2024
DataSheet
ESQ-120-24-T-D PDF
Availability
82 pieces
Unit Price
$6.14000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of ESQ-120-24-T-D is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

ESQ-120-24-T-D Specifications
Type Description
Series:ESQ
Package:Tube
Part Status:Active
Connector Type:Elevated Socket
Contact Type:Forked
Style:Board to Board
Number of Positions:40
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Insulation Color:Black
Insulation Height:0.535" (13.60mm)
Contact Length - Post:0.380" (9.65mm)
Operating Temperature:-55°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):5.7A per Contact
Voltage Rating:550VAC
