DF11Z-16DS-2V(20)

DF11Z-16DS-2V(20)

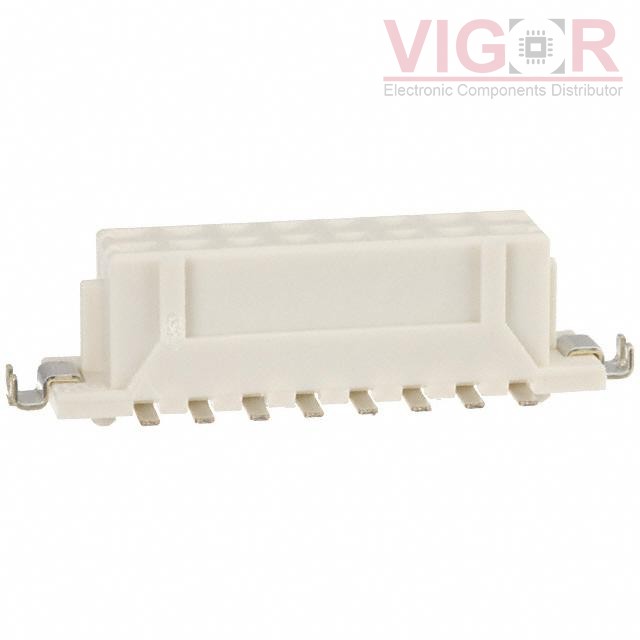

Image is for reference,
please contact us to get the real picture

Part No :

DF11Z-16DS-2V(20)

Manufacturer
Hirose
Description
CONN RCPT 16POS 0.079 TIN SMD
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
DF11Z-16DS-2V(20) PDF
Availability
124 pieces
Unit Price
$1.44000

Current price of DF11Z-16DS-2V(20) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DF11Z-16DS-2V(20) Specifications
Type Description
Series:DF11
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:16
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Friction Lock
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Insulation Color:Beige
Insulation Height:0.234" (5.95mm)
Contact Length - Post:-
Operating Temperature:-30°C ~ 85°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:7.55mm, 8.2mm
Ingress Protection:-
Features:Board Guide, Solder Retention
Current Rating (Amps):2A
Voltage Rating:250V
