M80-6811645

M80-6811645

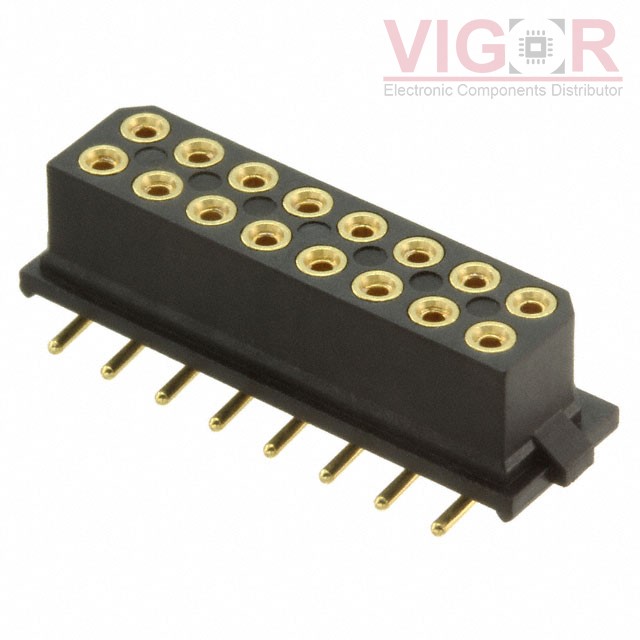

Image is for reference,
please contact us to get the real picture

Part No :

M80-6811645

Manufacturer
Harwin
Description
CONN RCPT 16POS 0.079 GOLD SMD
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
M80-6811645 PDF
Availability
0 pieces
Unit Price
$11.27692

Current price of M80-6811645 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

M80-6811645 Specifications
Type Description
Series:Datamate L-Tek
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:16
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Locking Ramp
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:12.0µin (0.30µm)
Insulation Color:Black
Insulation Height:0.220" (5.60mm)
Contact Length - Post:-
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Gold
Mated Stacking Heights:7.85mm, 8.45mm
Ingress Protection:-
Features:-
Current Rating (Amps):-
Voltage Rating:120V
