2046-20G00SA

2046-20G00SA

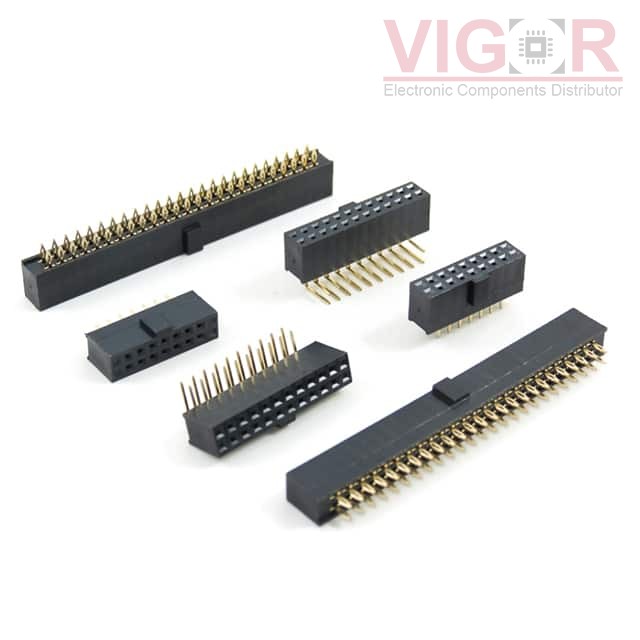

Image is for reference,
please contact us to get the real picture

Part No :

2046-20G00SA

Manufacturer
Oupiin
Description
PCB SOCKET, 20 PIN, STRAIGHT. 8.
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
2046-20G00SA PDF
Availability
863 pieces
Unit Price
$0.74000

Current price of 2046-20G00SA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2046-20G00SA Specifications
Type Description
Series:2046
Package:Tray
Part Status:Active
Connector Type:Socket
Contact Type:Female Socket
Style:Board to Board
Number of Positions:20
Number of Positions Loaded:16
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Insulation Color:-
Insulation Height:0.335" (8.50mm)
Contact Length - Post:0.126" (3.20mm)
Operating Temperature:-55°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Gold
Mated Stacking Heights:-
Ingress Protection:-
Features:Polarizing Key
Current Rating (Amps):2A
Voltage Rating:-
