M22-7142042

M22-7142042

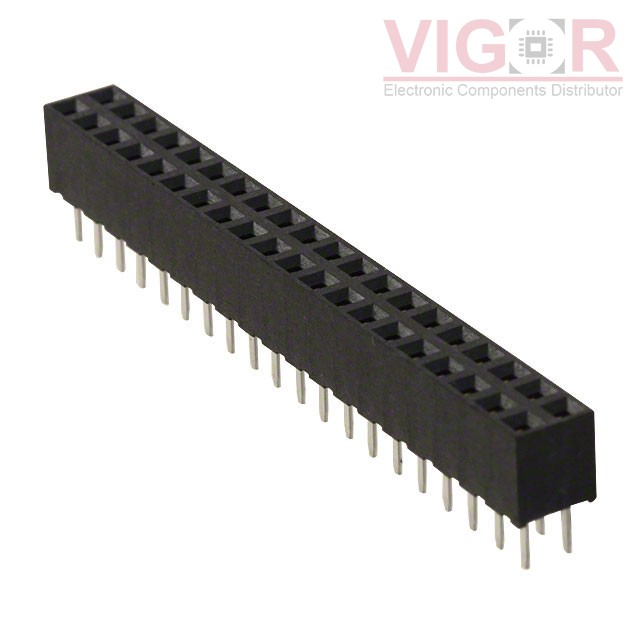

Image is for reference,
please contact us to get the real picture

Part No :

M22-7142042

Manufacturer
Harwin
Description
CONN RCPT 40POS 0.079 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
M22-7142042 PDF
Availability
244 pieces
Unit Price
$5.27000

Current price of M22-7142042 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

M22-7142042 Specifications
Type Description
Series:M22
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:40
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Insulation Color:Black
Insulation Height:0.173" (4.40mm)
Contact Length - Post:0.094" (2.40mm)
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:5.8mm, 6.55mm, 6.8mm
Ingress Protection:-
Features:-
Current Rating (Amps):2A
Voltage Rating:500VAC
